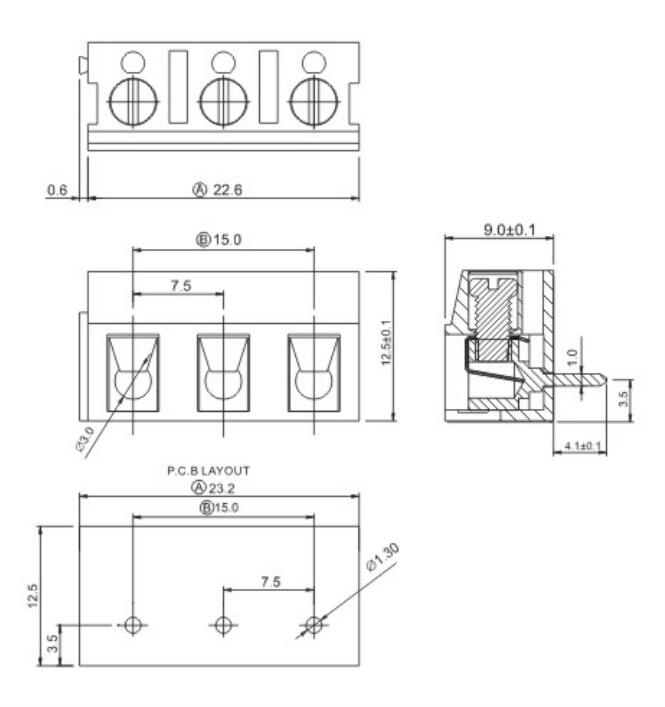

ZH300R-750
| ZH300R-750 Pitch：750MM | ||
| Part | Material | Plated |
| Frame： | PA66 UL94V-0 | － |
| Contact： | Brass | Tin |
| Screw： | M3.0Steel | Ni |
| Wireprotector： | Stainless Steel | － |
| Electrical | ||
| Voltage： | 250V | |
| Current： | 16A | |
| Wire size： | 14-26AWG | |
| Poles： | 2-30P | |
| Insulation Reslistance： | 5000MΩ/1000V | |
| Withstand Voltage： | AC2000V/1Min | |
| Mechanical | ||
| Acceptable Temperation： | -33℃~+120℃ | |
| Max Soldering： | +250℃,5Sec | |
| Strip Length： | 5.0-6.0mm | |
>
